2041021-4
Manufacturer:
TE Connectivity
Mfr.Part #:
2041021-4
Datasheet:
Description:

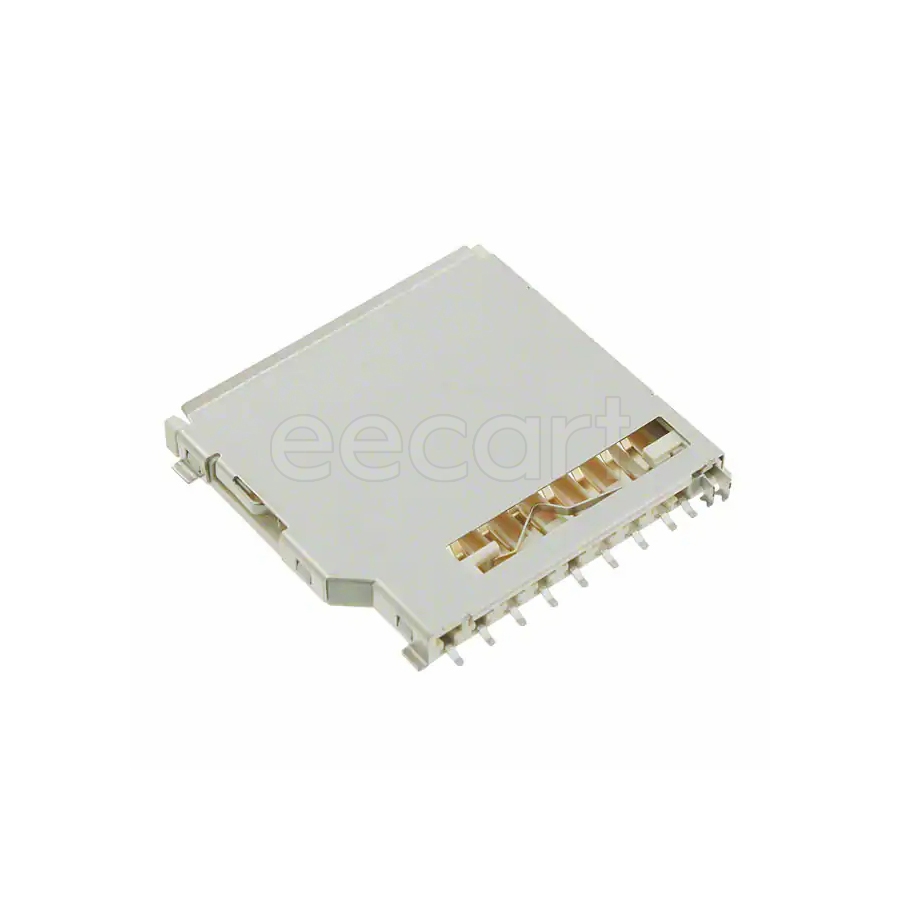

Card Edge Connectors SMD/SMT Number of Positions:9 Right Angle Contact Plating:Gold
| Parameter | Value |
|---|---|
| Length | 27.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| Depth | 26.25 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.42 mm |
| Current Rating | 500 mA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Gender | Female |
| Number of Contacts | 9 |
| Connector Type | SD Card Connector |
| Contact Type | |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Card Thickness | |
| Housing Material | Thermoplastic |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Mounting Angle | Right Angle |
